PHYSICAL CHARACTERISTICS
 Size: 15.72 in. H x 19 in. W
x 13.750 in. D
 Weight: 14.5 lbs.
 Slide  Travel: up to 39.5 in.
 Construction  Material: 6061-T651 Aluminum Alloy
 Load  Rating: 265 lbs. (Max)


To request a quote or information on this rack assembly or a custom rack assembly, please contact us by clicking on the button below.


The Model RA-19 Rugged Rack Assembly is an aluminum alloy rack assembly that fits in a 19 inch rack. The solid construction, universal mounting points and extendable slide mounts make this rack assembly ideal for mounting COTS (Commercial-Off-The-Shelf) hardware, such as printers, monitors and computers.
RA-19 Rack Assembly Data Sheet - PDF

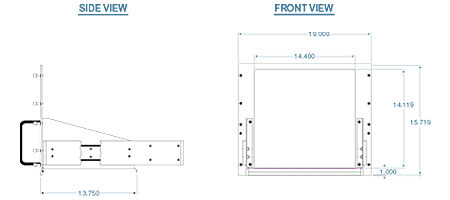

SCHEMATIC DRAWING
