  Digital LED Technology
  (Full color, photo quality)

 Size: 15" H x 19" W x 24.2" D
 Weight: 80 lbs.
 Configuration: Tabletop or optional Rack Mount

 Input Power: 90 - 132 Vac,
47 - 440 Hz
 Power Consumption: 250W
 Data Interface - Standard: Parallel – IEEE 1284 (Centronics), 10/100BaseT Ethernet, and USB
Data Interface - Optional: 10Base2 Ehternet


Photo Quality

 Print Speed:

16ppm - Color
24ppm - B/W
85 second warm-up (max)

 Paper Size: A4, Legal, Letter
Memory 64MB, 320 MB Max

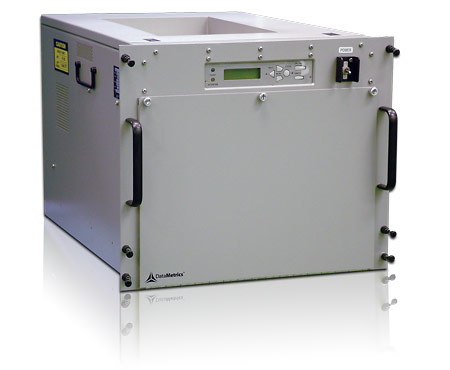

The Model 3300 is a ruggedized digital color printer utilizing a new generation industrial off-the-shelf engine. The printer is a digital color printer using LED technology for superior printing characteristics. It contains a 400 MHz PowerPC processor and has 16.4 million color capability providing full photographic quality output. Printed images are high-contrast and long lasting. This product is manufactured to operate in harsh environments and meets stringent military specifications. Its inherent rugged design and minimal moving parts makes it an ideal product for most military applications.

3300 Digital Color Printer Data Sheet - PDF

3300 Operation and Maintenance Manual - PDF1980 Operation and Maintanance Manual

 Temperature: Operating: 0°C to 45°C     Storage: -40°C to 71°C (excluding consumables)
 Humidity: Operating: 20 to 80%, Non-condensing
Storage: 5 to 95%, Non-condensing
 Shock: 30g, 11ms
 Vibration: 1.1G random and sinusoidal
 Altitude: Operating: -1,500 to 15,000 ft.
Non-operating: -1,500 to 40,000 ft.
 EMI/EMC: FCC part 15, Class B
